ZZT for the NES Unofficial NES Port

The title screen of Town of ZZT: the ZZT logo, boxes of centipedes, lions, tigers and other creatures, and a legend of items

ZZT (1991) is Tim Sweeney's text-mode adventure and game-making system: every board is a grid of 60×25 characters, and its objects run their own little programs. This is ZZT 3.2 rebuilt as a Nintendo Entertainment System cartridge, running here in your browser: all of Town of ZZT and the ZZT demo world, every board on one screen in a hand-drawn font of 4×8-pixel characters.
An unofficial port. NES Port by BX Foundry. Your saved game stays in this browser.
How it works, and how it was made →

Click Play, or press any game key.

Keyboard: arrows, X = A, Z = B, Enter = Start. A gamepad works too.

The game

"Your task is to find the five purple keys that are hidden throughout the Town. These keys unlock the doors leading into the Palace, your destination." Gems keep you alive, ammunition and torches help, and anything unusual is worth touching. There are 33 boards: a forest, a castle, the Mixer, a prison, puzzles, and six dragons. The title menu's Choose world switches to the ZZT demo world, a tour of every item, creature and terrain.

On the NES

  • The whole 60×25 board on one screen: two board cells per NES tile, in a font drawn for it.
  • ZZT's sidebar becomes a status bar at the bottom.
  • An optional soundtrack: three original tracks, for the title, the boards and dark rooms (Music in the menus). ZZT's own sounds and tunes come first.
  • Text windows unroll and scroll smoothly (the NES draws them on a second screen and switches between the two partway down the picture).
  • Colours are chosen per 4×2 cells, so now and then a cell shows a nearby colour.
  • Not ported: the world editor, printing.

How it works, and how it was made →

Download

The cartridge is a standard MMC3 board (512 KB PRG-ROM, 8 KB CHR-RAM, 8 KB battery RAM, NES 2.0 header): it runs in NES emulators and on MMC3 flash carts. The source is built from Adrian Siekierka's Reconstruction of ZZT (MIT), with cc65 and Python; its README says how to build it.

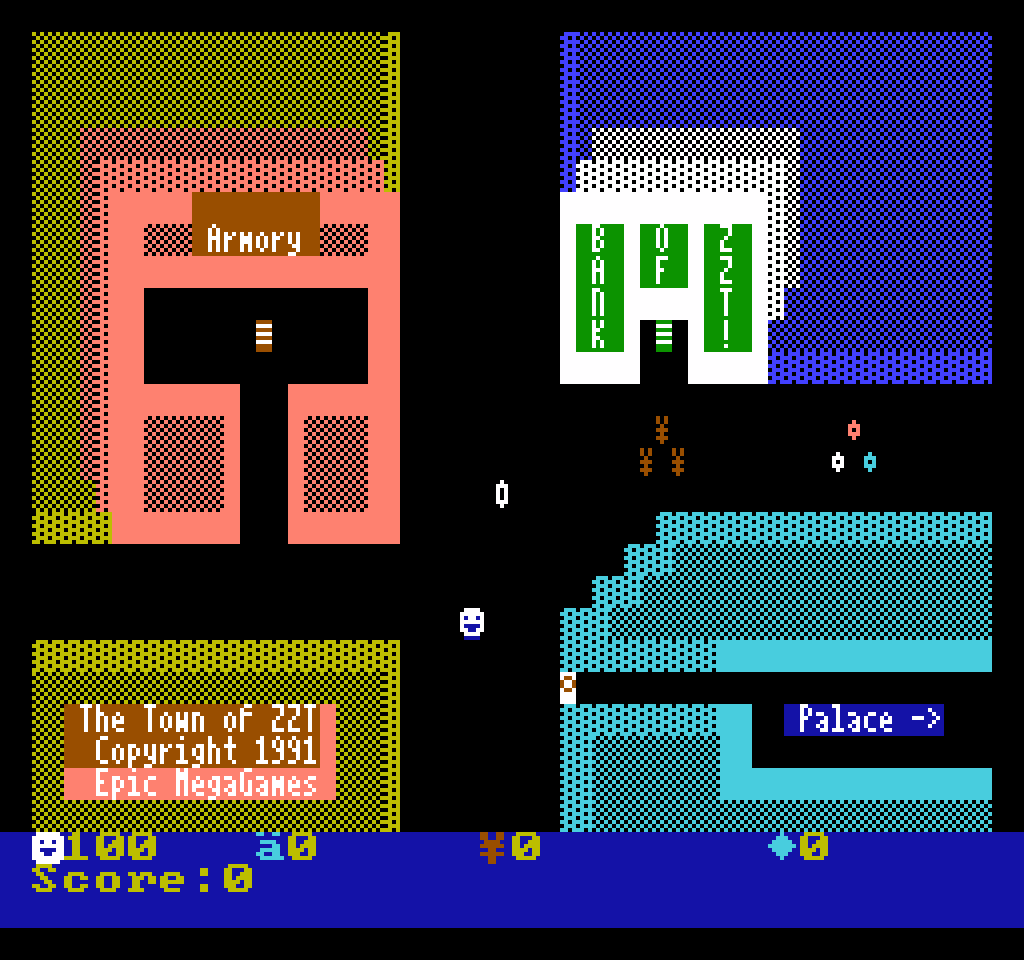

The first board of Town of ZZT: the Armory, the Bank of ZZT, and the way to the Palace
Town of ZZT

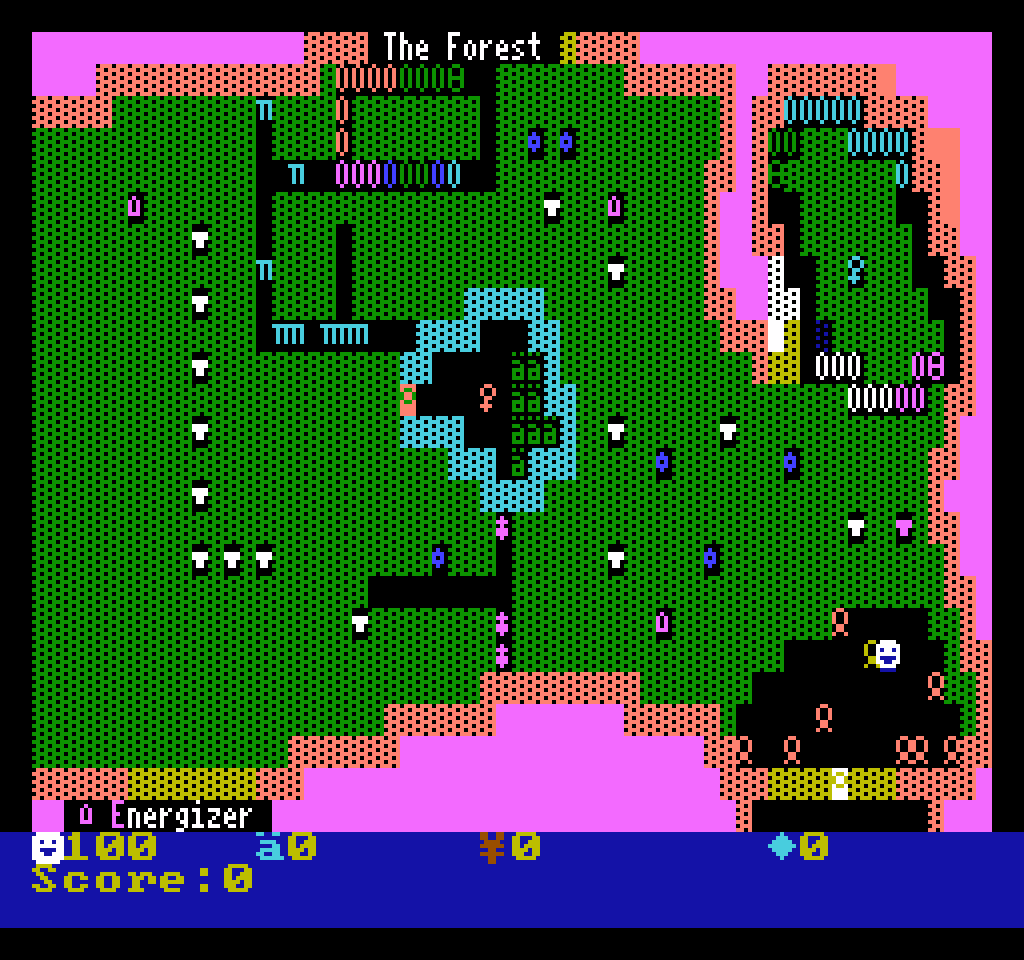

The Forest board, full of trees, creatures and an energizer
The Forest

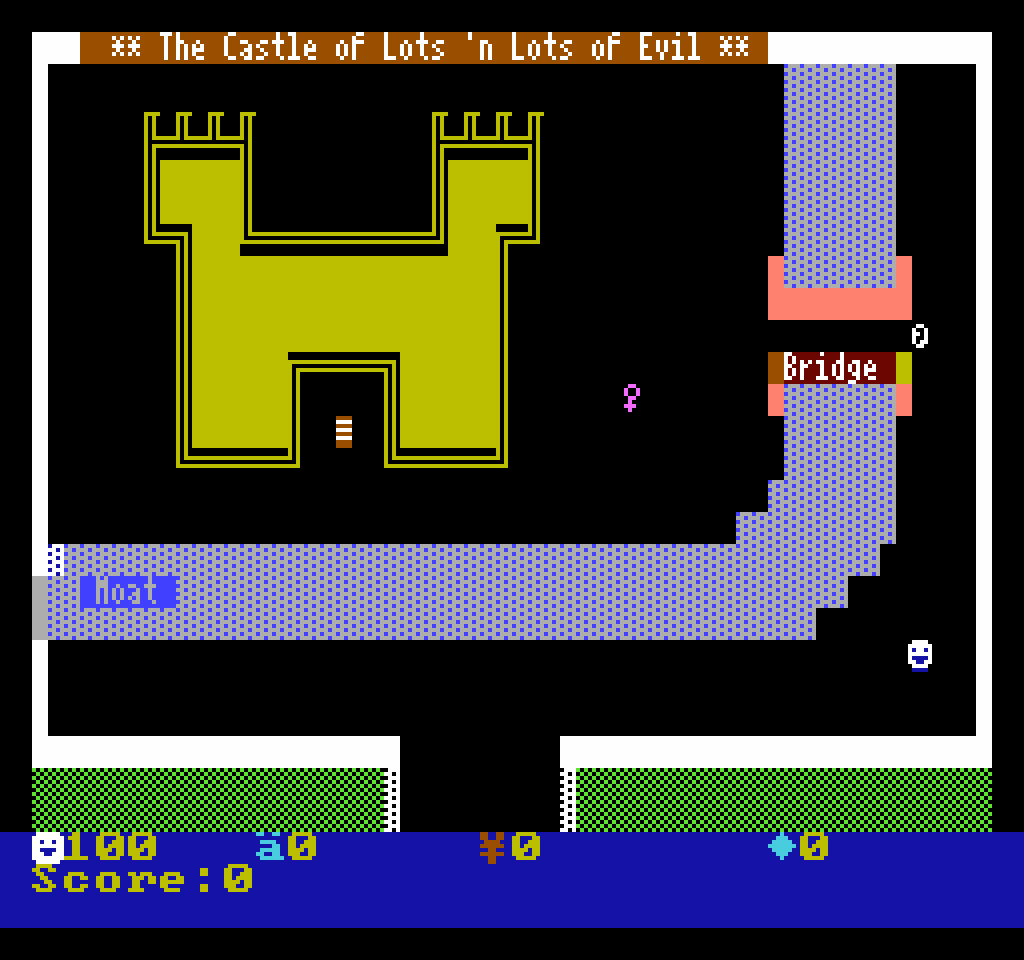

The Castle of Lots 'n Lots of Evil, with its moat and bridge
The Castle of Lots 'n Lots of Evil

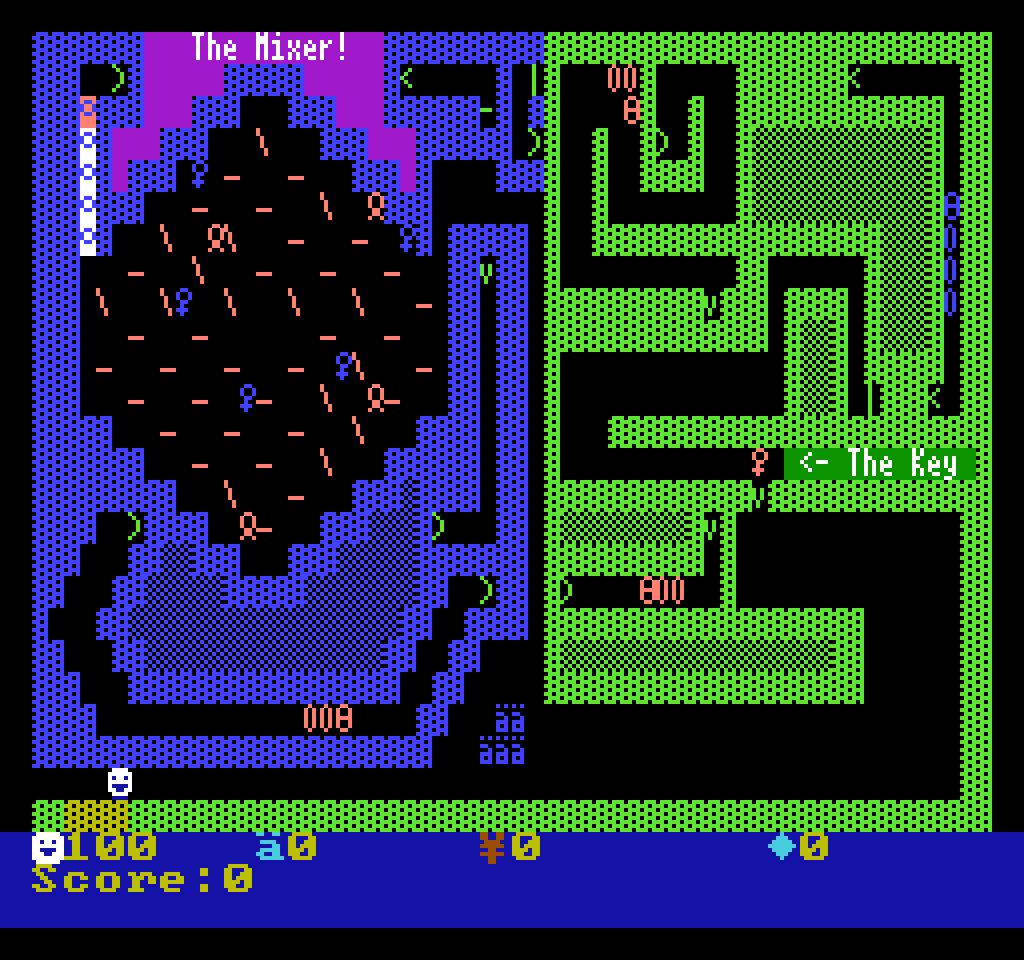

The Mixer: a field of moving lines and a key behind a maze
The Mixer

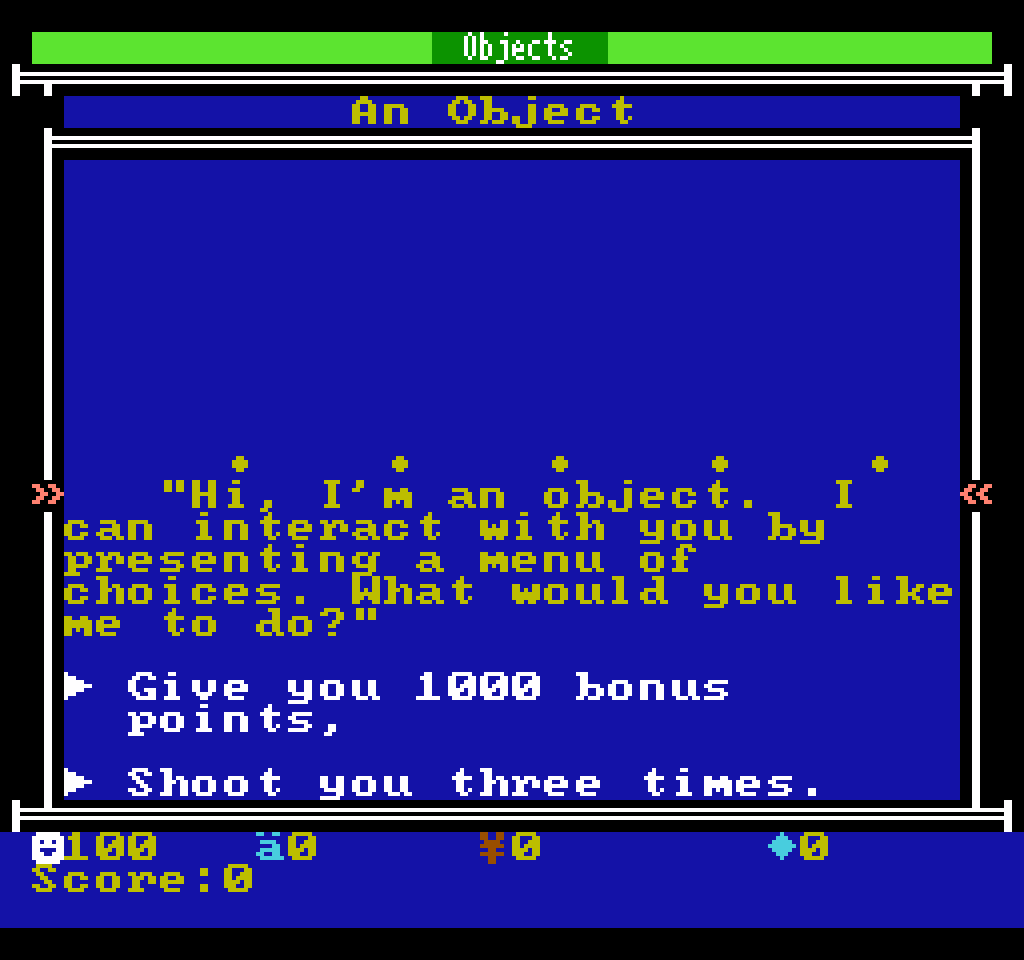

A text window: an object offers a menu of choices
An object talks (the demo world)

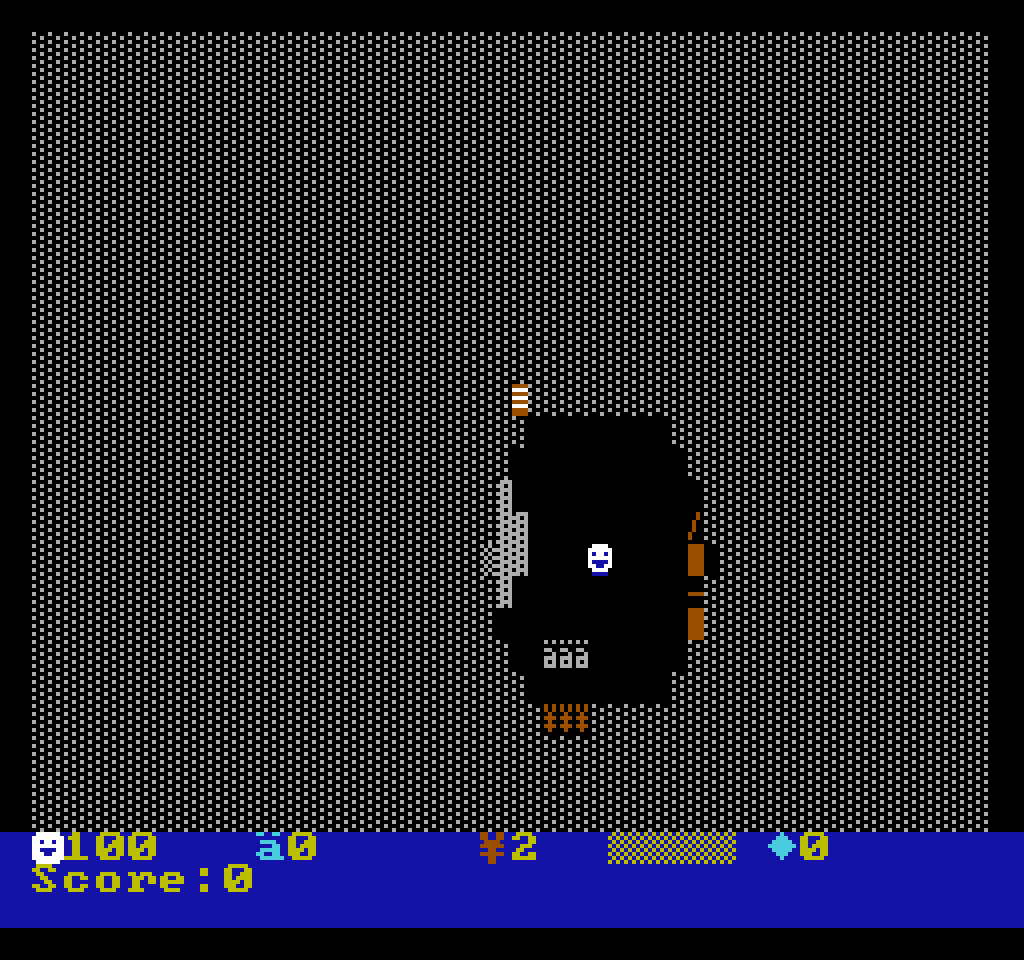

A dark room lit by a torch around the player
A torch in a dark room

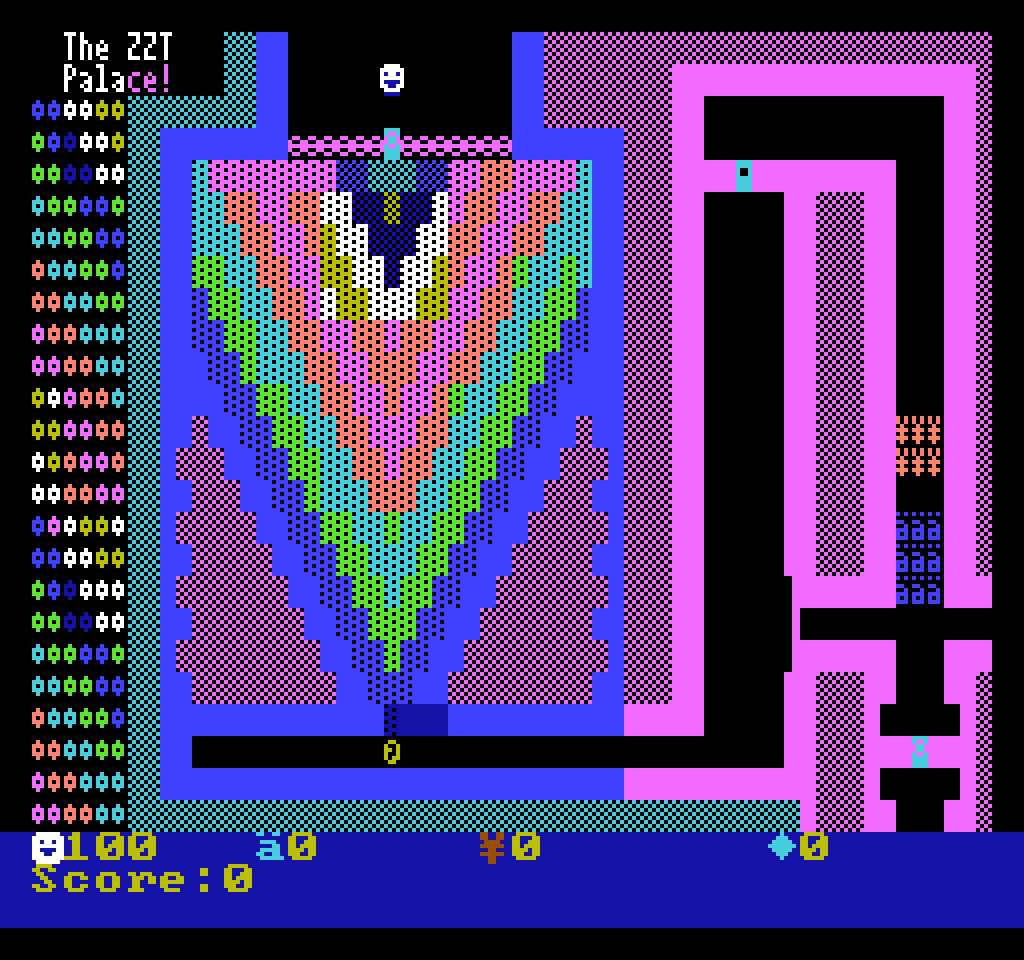

The ZZT Palace with its rainbow hall
The ZZT Palace

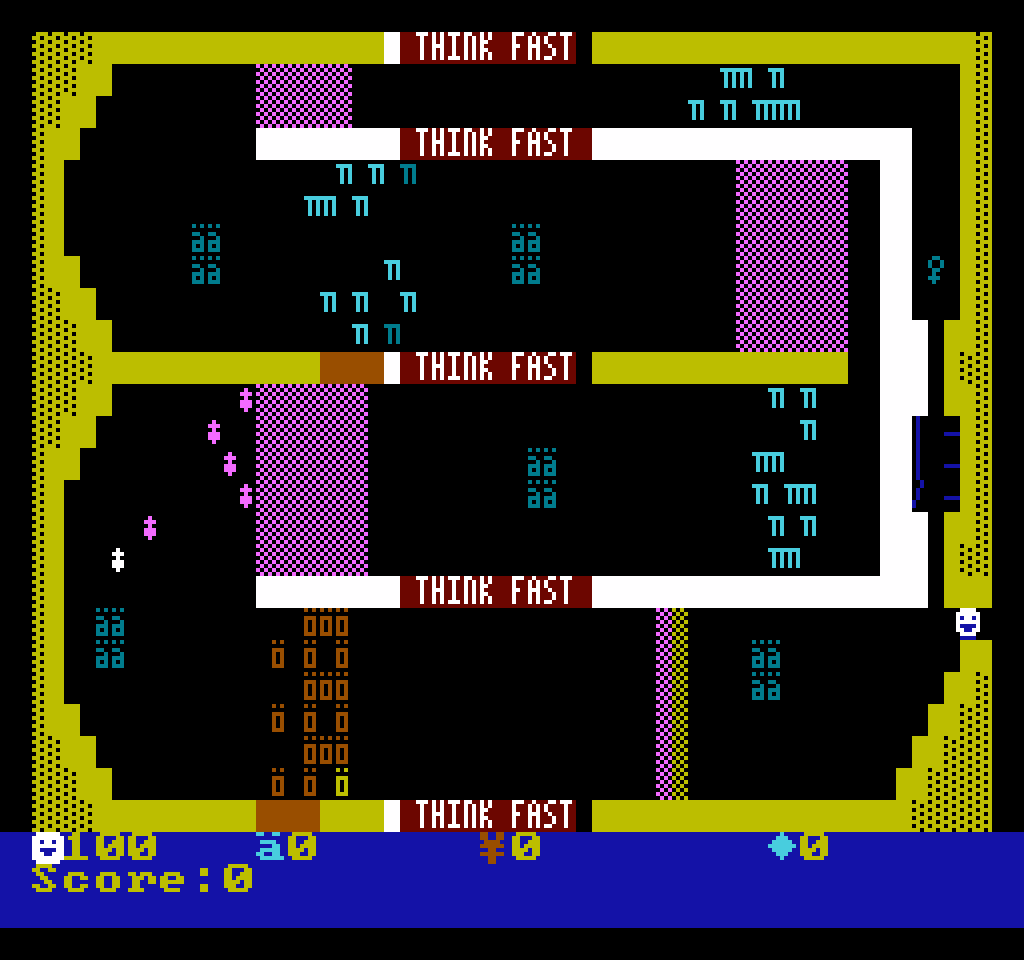

The Think Fast board
Think Fast

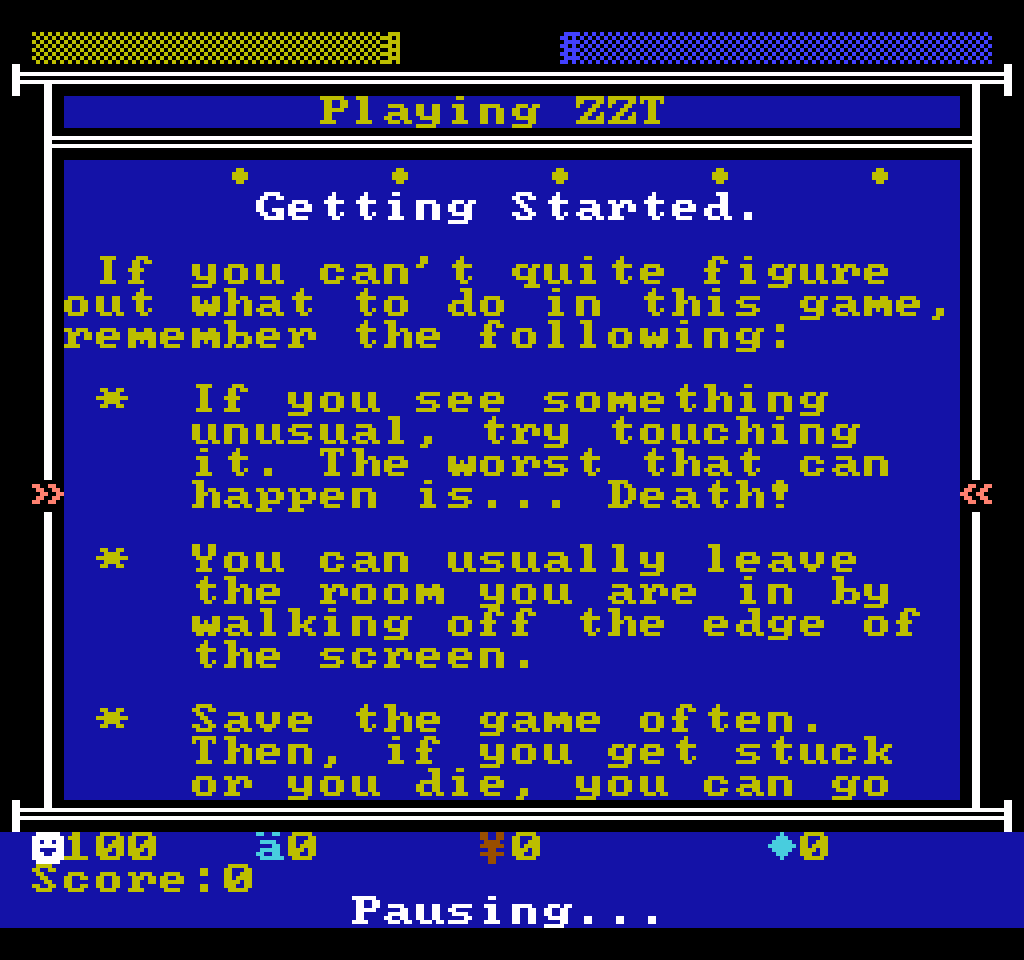

The help window: Getting Started
Help, in the menu

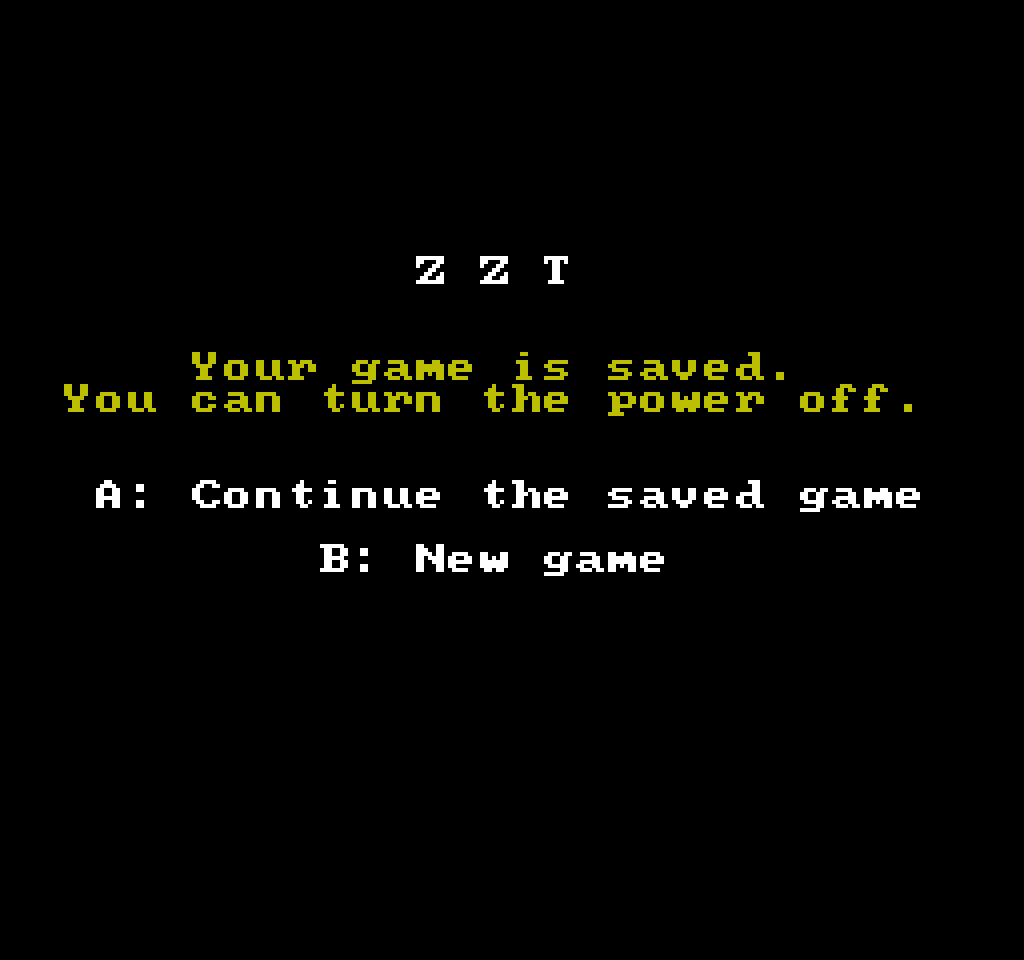

The screen after Save and quit: Your game is saved
After Save & quit
